Field Gates - Timber & Steel

Our range of robust Field Gates offer long lasting stability and strength, perfect for all types of entrances from equestrian to residential. We also offer a wide range of steel field gates. All of our gates have box section hang & slam stiles as well as box section mid gate bracing for great strength. All have reinforced sleeved eye holes. Cattleyard gates also stocked along with hang & slam posts to suit most gate types. Sheeted steel gates & deer gates available to order.

Many of our field gates are available in custom heights and widths and selected styles are available for both right and left hand hanging.

Please call 01992 578496 for assistance in selecting the best gate option for your application.

Steel Field Gates

Barrier Gate

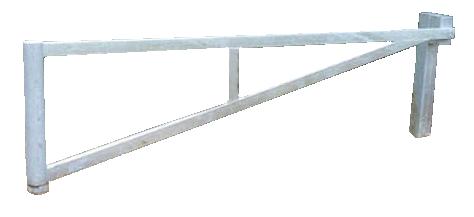

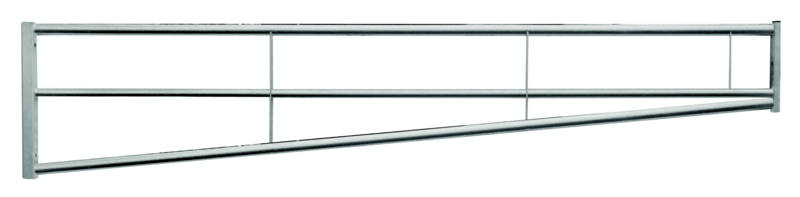

Barrier Gate - Ideal for closing off vehicle access. Fitted with a padlock able sliding bolt and sleeved hanging stile as standard. Hang end 762mm high, slam end 356mm high.

Universal Gate

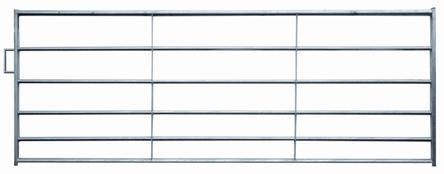

Universal Gate - A 6 rail medium weight yard or field gate with D loop, box hang & slam stile and sleeved eye bolts. From 3'-16'.

Fully Meshed Gate

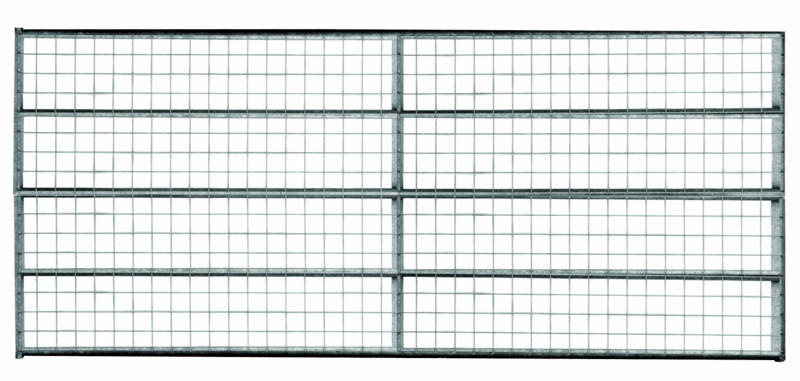

Fully Meshed Gate - Our 4 rail fully meshed gates come complete with a fitted keyhole/pendulum sliding bolt. A box section hanging and slam stile are complimented with all the rails being 44.5mm o.d. tube and clad with 75x75mm mesh. 1143mm high.

Half Mesh Gate

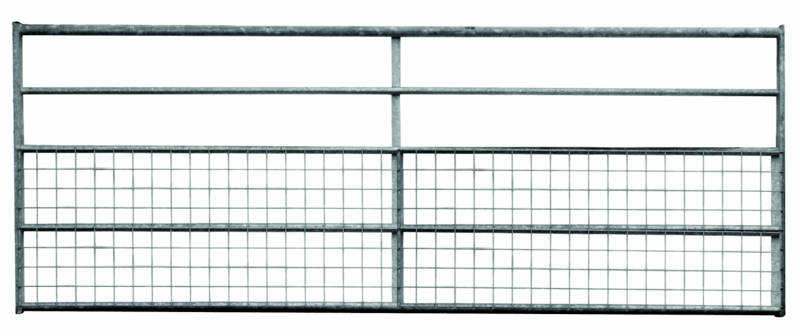

Half Meshed Gate - A 5 rail quality field gate ideal for containing small animals and young stock. This gate has a sleeved box section hanging stile, 44.5mm o.d. top and bottom rails, 30mm o.d. intermediates and clad with 75x75mm weldmesh. 1143mm high.

Fortress

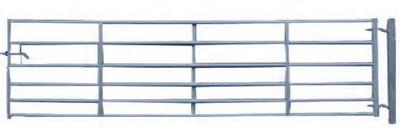

Fortress Gate - A 6 rail heavyweight galvanised yard or field gate with spring bolt, box hang & slam stile and sleeved eye bolts. A range of sizes available from 3'-16'.

8 rail premier gate

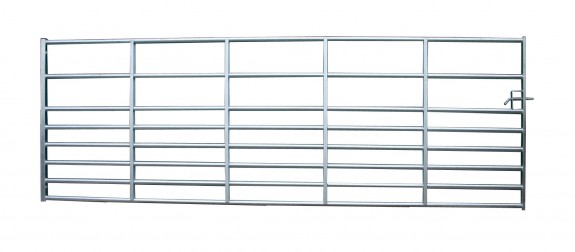

8 Rail Premier Gate - A medium weight double braced field gate ideal for use where extra height is required. Sleeved box section hanging stile and spring bolt are standard features. All horizontal rails are 44.5mm dia tube. Height is 1525mm (5'0).

new forde gate

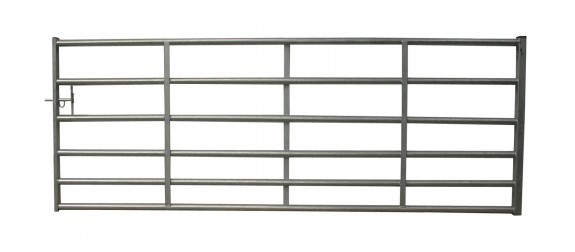

New Forde 6 Rail Gate - A heavy duty 6 railed field gate which can also be utilised for light penning duties such as calving boxes. It has a 50x50mm sleeved hanging stile, 48.3mm o.d. top and bottom rails and 38mm o.d. intermediaries and is supplied with your choice of either D loop or pendulum sliding bolt. 1143mm high.

6 rail imperial/highland

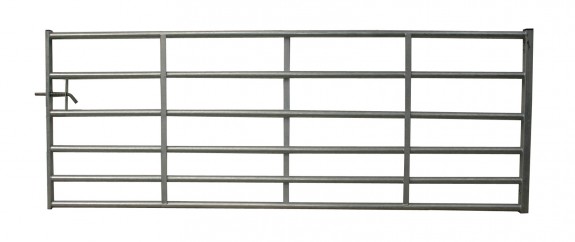

6 Rail Imperial/Highland Gate - A sturdy medium weight field gate. Supplied with a spring loaded slide bolt, and box section hanging stiles. All horizontal rails are 44.5mm dia tube. The Highland is identical to the Imperial but is braced on both sides for added strength. Both gates are 1143mm high.

buxton sheeted gate

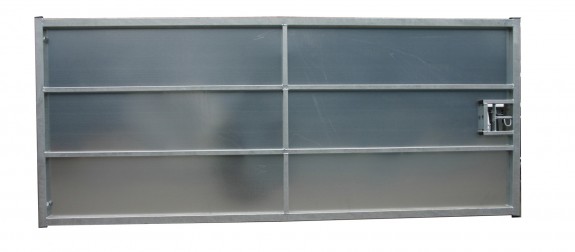

Buxton Sheeted Gate - Ideal for use in exposed positions, this heavy duty (any hand) 4 railed sheeted gate has a 50x50 box section frame and a 50x30 RHS infills and sleeved hanging stile. Clad to one face with a pre-galvanised sheet and fitted keyhole/pendulum type sliding bolt. Standard height is 1270mm but can be supplied in a variety of alternative heights.

moorland sheeted gate

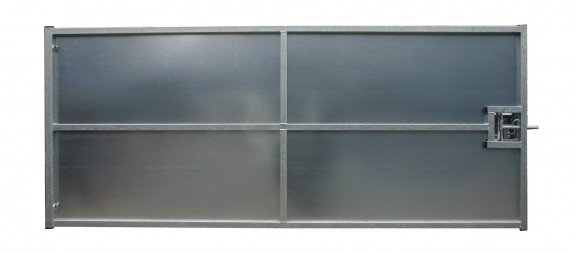

Moorland Sheeted Gate - A medium weight (any hand) 3 railed sheeted gate, fitted with keyhole pendulum type sliding bolt. 1270mm high with a 50x50 sleeved box section hanging stile and the remainder 40x40 box section, clad to one face with pre-galvanised sheet.

deer gate

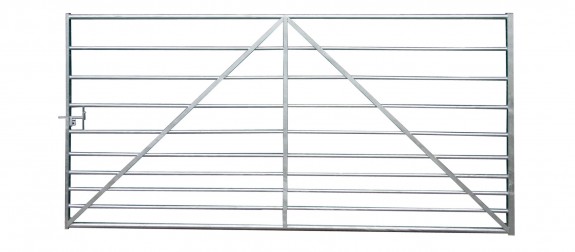

Deer Gate - The 1860mm high Deer Gates are offered in three designs. 10 railed, 7 railed, part meshed or fully meshed. Supplied with a padlock able sliding bolt as standard.

cattleyard 5 rail gate

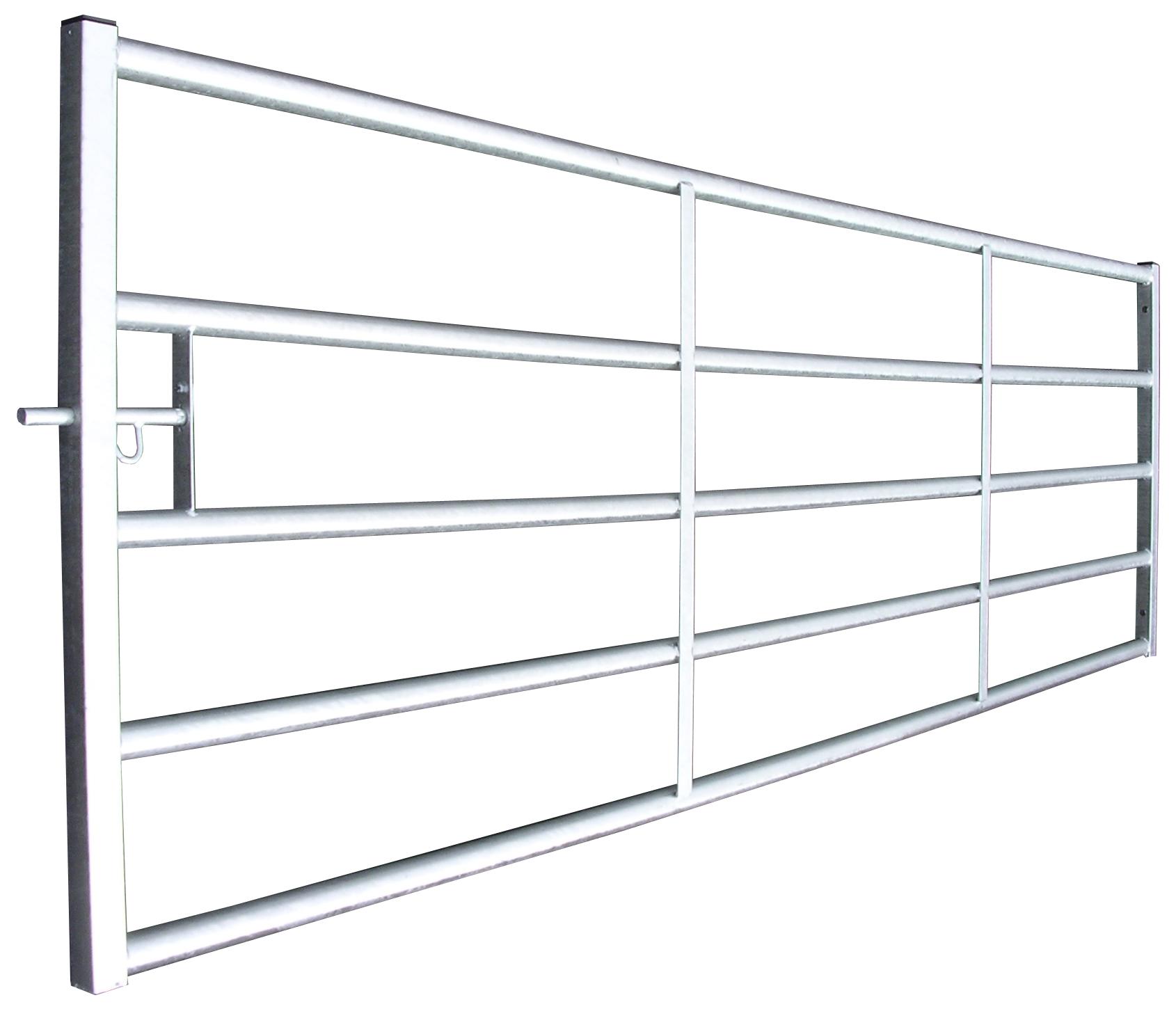

Cattleyard 5-Rail Gate - A strong gate suitable for use in open cattleyards. Supplied as standard with keyhole/pendulum sliding bolt and sleeved 50x50 hanging stile. Top and bottom rails are 48.3mm o.d. whilst the intermediates are 44.5mm o.d. 1143mm high.

Timber Field Gates

estate

Estate - Available in softwood & Iroko. Standard sizes in both Iroko and softwood range from 3’ (0.915m) to 12’ (3.66m) wide with a standard height of 3’3.5” (1.03m) to the top of the top rail. Custom sizes available to order.

blenheim

Blenheim - Made to order in kiln dried Iroko. Sizes range from 3’ (0.915m) to 12’ (3.66m) wide with a standard height of 5’ 7” (1.52m) to the top of the extended hanging stile, and 3’ 7’’ (1.09m) to the top of the closing stile.

equestrian

Equestrian - 5' high five bar gate with heavy duty top & bottom rail as standard. Able to be hung from either end. Supplied in pressure treated softwood. Standard widths range from 3' to 12', with a standard height of 5' to the top of the stile. Custom widths are available.

forrester

Forester - A traditional five bar diagonal braced gate. Features a domed top bar with a superior hanging stile with mortice & tenon joints and diagonal braces. Supplied in pressure treated softwood & available in both left & right hand hanging. Standard widths from 3' to 12' with a height of 3'7".

somerfield

Somerfield - The Somerfield is a popular traditional 5 bar gate. Its classic design features a tapered top bar with superior hanging stile. The robust frame is joined using mortice and tenon joints providing maximum strength. Planed with a chamfered top bar, ensuring a smooth attractive finish, and with stainless steel nuts and bolts this good value long lasting gate is suitable for all types of entrances from residential to equestrian. Available in Softwood in custom widths.

highgrove

Highgrove - The Highgrove has a universal design with two 4’’ x 3’’ stiles allowing it to be hung from either end. The straight domed top bar is assembled by traditional mortice and tenon joints which are supported by a robust diamond bracing. Available in Softwood in custom widths.

hunting

Hunting - The Hunting is a classic design five bar gate which benefits from a tapered top bar with superior hanging stile, joined using traditional hardwood doweling through mortice and tenon joints providing maximum strength. Made from specially selected timber with fewer smaller knots resulting in a more stable gate, ensuring it is built to last. Available in custom heights and widths in both Iroko Hardwood or Softwood.

windsor

Windsor - The Windsor is a unique design that benefits from an extra rail making it a popular choice to safeguard pets. Its design features a tapered top bar with superior hanging stile, which are joined using traditional hardwood stop dowelled mortice and tenon joints. At 3’ 7” high the top bar and its five close fitted rails make it ideal for animal enclosures. Available in custom heights and widths in both Iroko Hardwood or Softwood.

somer6

Somerfield 6 - The Somerfield 6 bar is the classic Somerfield with an extra rail to safeguard stock or pets. Its classic design features a tapered top bar with superior hanging stile. Available in Softwood in custom widths.

somerset

Somerset - This classic design benefits from a tapered top bar with superior hanging stile, joined using traditional hardwood stop dowelled mortice and tenon joints, providing maximum strength. Specially selected timber with fewer smaller knots is used resulting in a more stable gate, ensuring it is truly built to last. Available in custom heights & widths in Iroko hardwood or Softwood.
